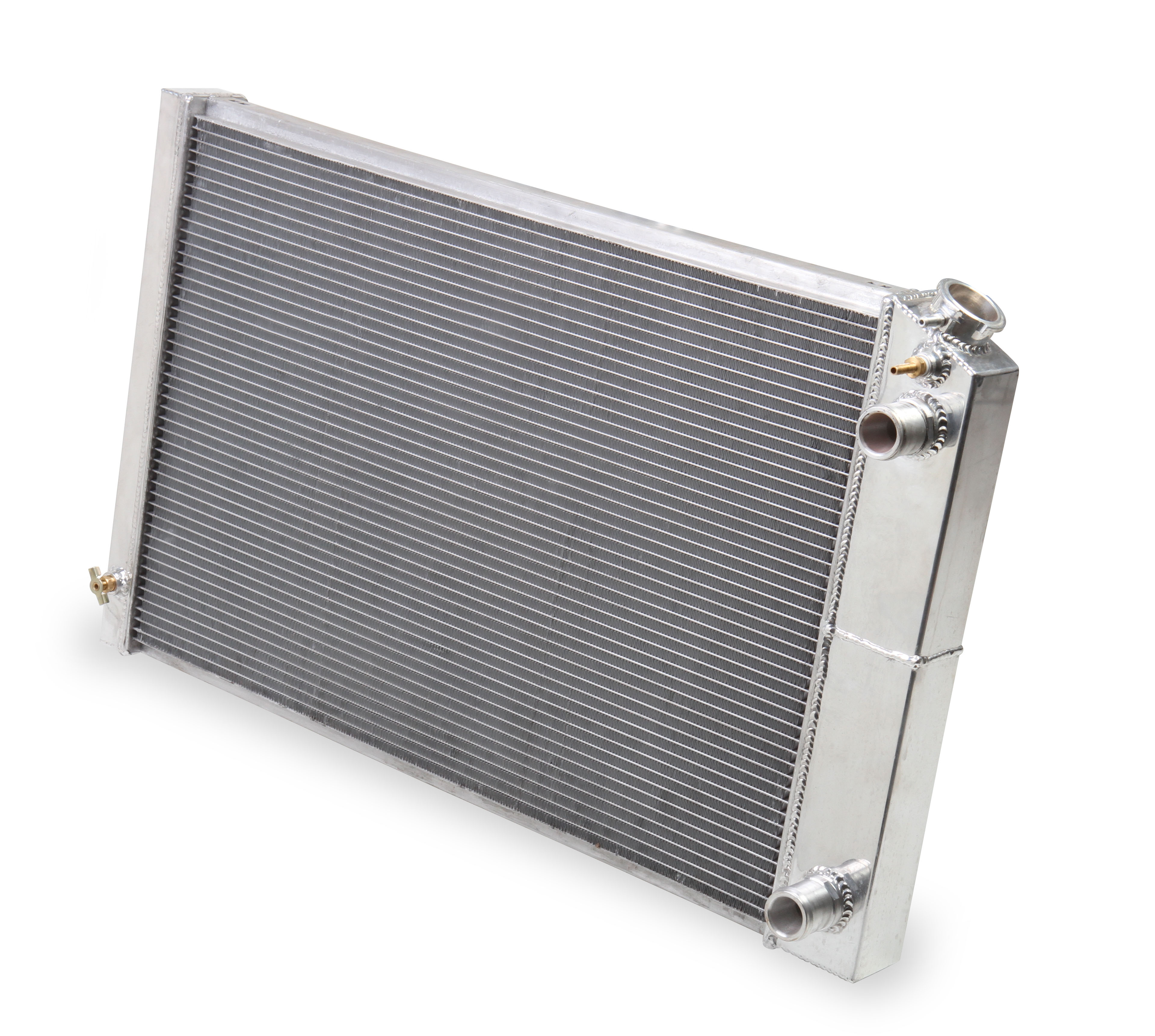

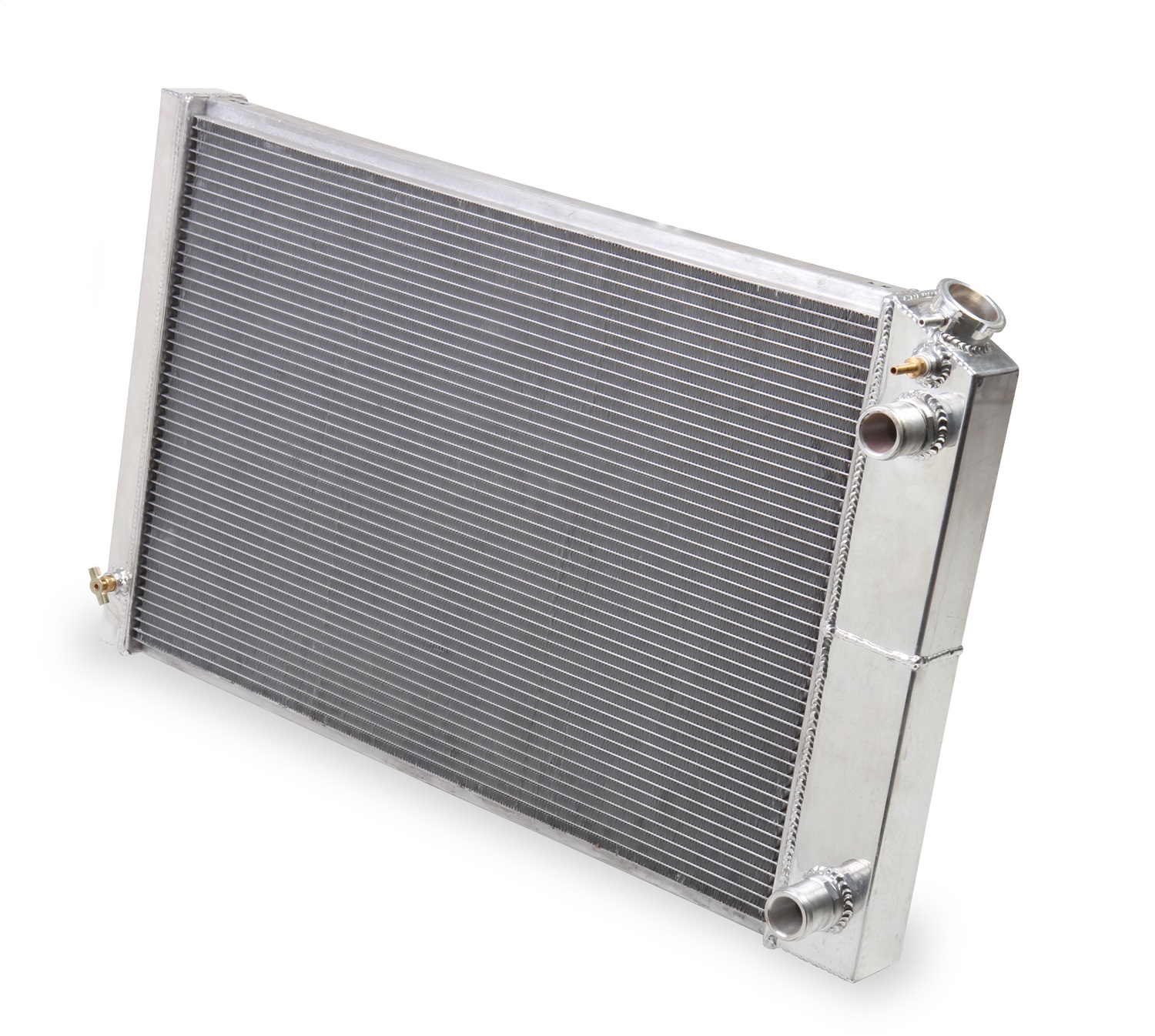

FROSTBITE ALUM RADTR 3-ROW LS-SWAP 79-93
Frostbite : FB310
Nr artykułu: FRBFB310
* 100 Percent TIG Welded Seams * 1 Year Limited Warranty * Aircraft Quality Aluminum Core/Fittings/Tanks * Billet Aluminum Filler Neck And OEM Brass Petcock * More Cooling Fins Per Inch For More Efficient Cooling * Custom Frostbite High Performance 16 lb. Radiator Cap * Polished Top And Tanks For Custom Show Appearance * 3-Row Supporting Applications w/600+ Horsepower * Flow Style Is Dual Pass * Designed To Maximize Cooling Efficiency
Aluminum Radiator; 3-Row; AN Bungs Inlet/Outlet; 19 1/8 x 29 1/4 in. Overall; Saddle Mount; For Use w/LS Engine Swap 4.8/5.3/6.0/6.2/7.0L;
- Cooling Row Diameter: 0.6875 in.
- Core Dimension: 17.000 in. x 24.000 in.
- Core Thickness: 2.200 in.
- Flow Style: Dual Pass
- Hose Location Inlet: Passenger
- Hose Location Outlet: Passenger
- Inlet Diameter: AN Bungs
- Inlet Size: AN Bungs
- Item Height: 19.100 in.
- Material: Aluminum
- Mount Type: Saddle Mount
- Mounting: Saddle Mount
- Outlet Diameter: AN Bungs
- Outlet size: AN Bungs
- Overall Dimension: 19.125 in. x 29.250 in.
- Overall Length: 29.250 in.
- Radiator Core Row Quantity: 3
- Steam Port Fitting Size: 0.025 in. NPT
- Transcooler Provision: No
